ma-P 1200G series
Share on email
Share on telegram
Share on whatsapp
Share on twitter
Share on facebook
Share on linkedin

Unique Features

  • Reduced contrast
  • Film thickness up to 60 µm and higher

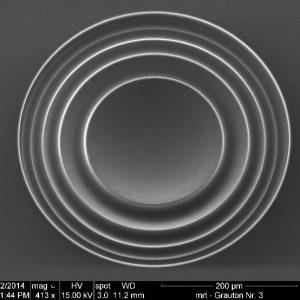

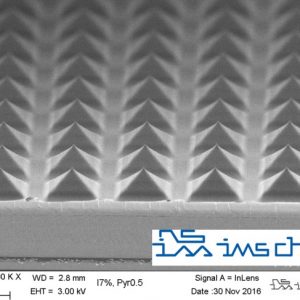

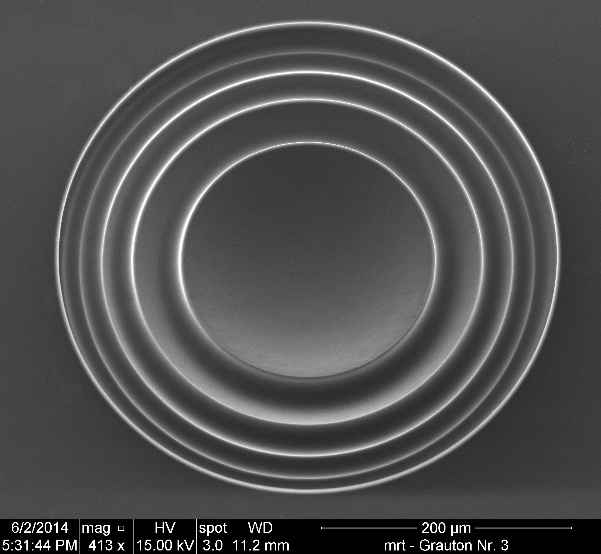

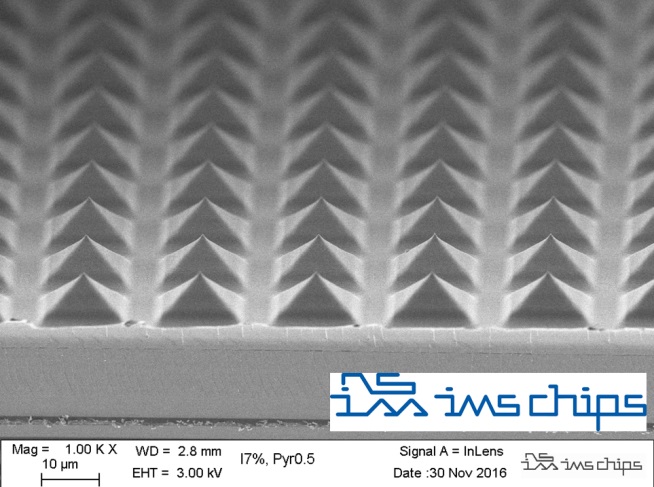

  • 50-60 µm depth range of the patterns possible in greyscale lithography
  • Spectral sensitivity 350…450 nm
  • High intensity laser exposure possible without outgassing
  • Aqueous alkaline development, for greyscale lithography with TMAH based developers, for standard binary lithography also with metal ion bearing developers
  • Suitable for electroplating
  • Suitable for dry etch processes e.g. with CHF3, CF4, SF6
  • Suitable for pattern reflow after standard binary lithography

Applications

  • Use of manufactured 3D patterns in micro-optics, MEMS and MOEMS, displays
  • Pattern transfer by
    • UV moulding
    • Etching
    • Electroplating

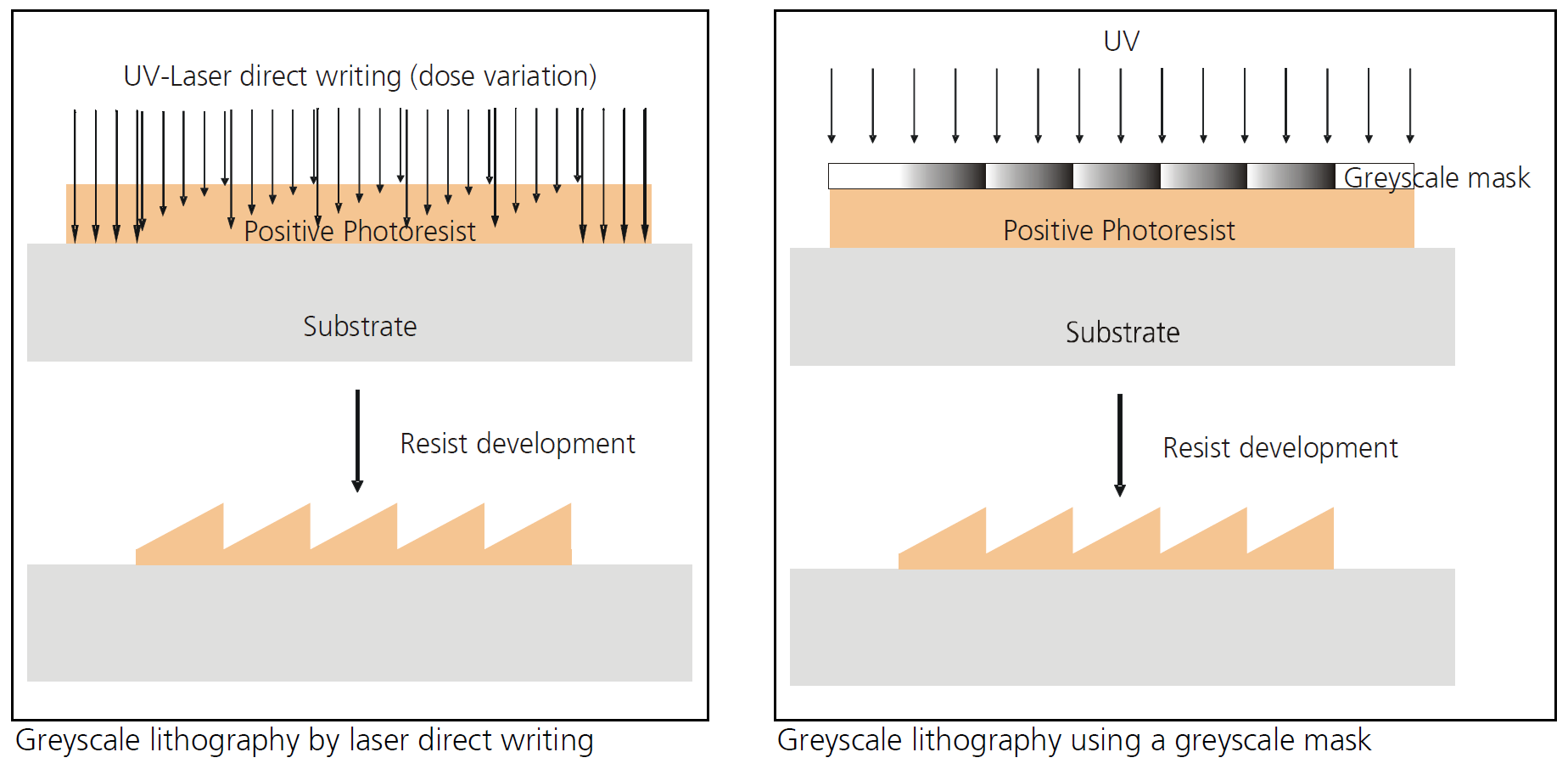

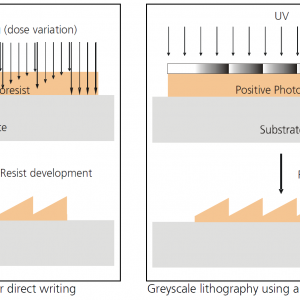

ma-P 1200G is a positive tone photoresist series specifically designed for the requirements of greyscale lithography. Standard binary lithography is also possible.
Photoresist series for greyscale lithography
Resist ma-P 1215G ma-P 1225G ma-P 1275G

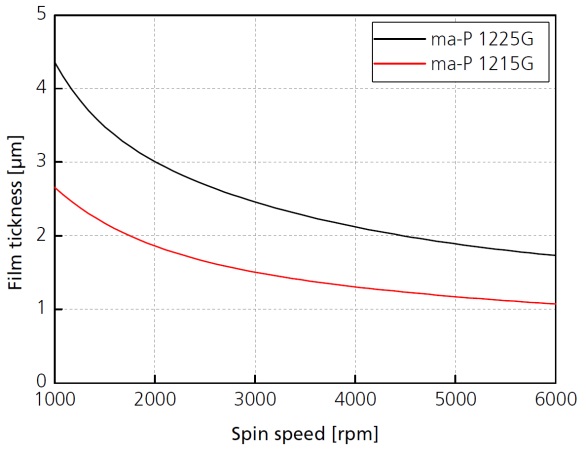

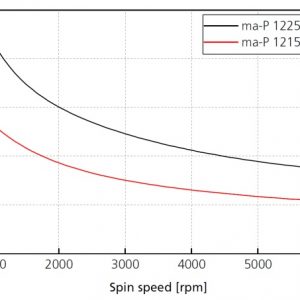

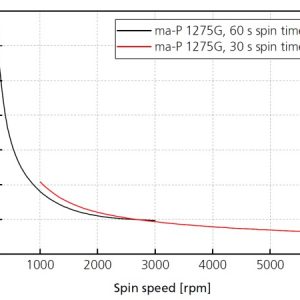

"Film Thickness [µm]
spin coating @ 3000 rpm"
1.5 2.5 9.5

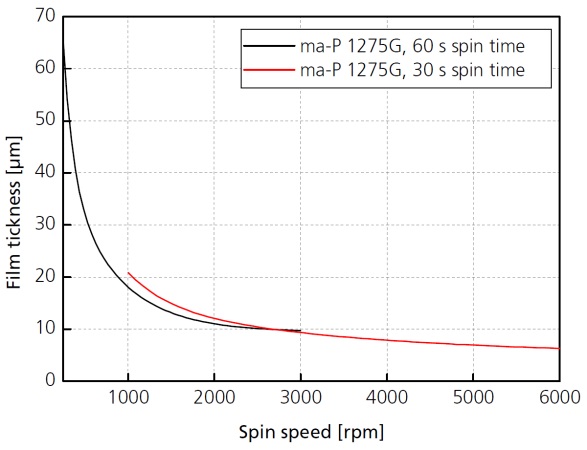

(up to 60 µm @ lower spin speeds)

dyn. Viscosity [mPas]

(typical values @ 25 °C, 1000 s-1)

21 51 900
Prebake 95 - 100°C
Spectral Sensitivity 350 - 450nm

i-line - 365 nm; h-line - 405 nm; g-line 436 nm

Exposure Dose

Hg lamp @ 365 nm

Laser direct writing

"1 - 60 µm film thickness
60 - 5000 mJ/cm² (Standard binary lithography)
10 - 350 ms/ spot (Greyscale lithography)"
Developer "ma-D 532/S, mr-D 526/S (TMAH based) for greyscale lithography
ma-D 331 (NaOH based) for standard binary lithography"
Remover mr-Rem 700 (NMP & NEP free)

mr-Rem 500 (NMP free)

ma-R 404/S (strongly alkaline)

Recommended process chemicals:
Thinner ma-T 1050
Developer ma-D 532/S, mr-D 526/S (TMAH based) for greyscale lithography
ma-D 331 (NaOH based) for standard lithography
Remover mr-Rem 700 (NMP & NEP free)
mr-Rem 500 (NMP free)
ma-R 404/S (strongly alkaline)
