Manufacturing Microlens Arrays by Reflow and UV Moulding
Manufacturing Microlens Arrays by Reflow and UV Moulding
23. Juni 2020

A cost-efficient method for the manufacturing of micro lens arrays is the reflow of patterned positive resists ma-P 1200G or ma-P 1200 and subsequent pattern transfer using OrmoStamp® or OrmoComp®.

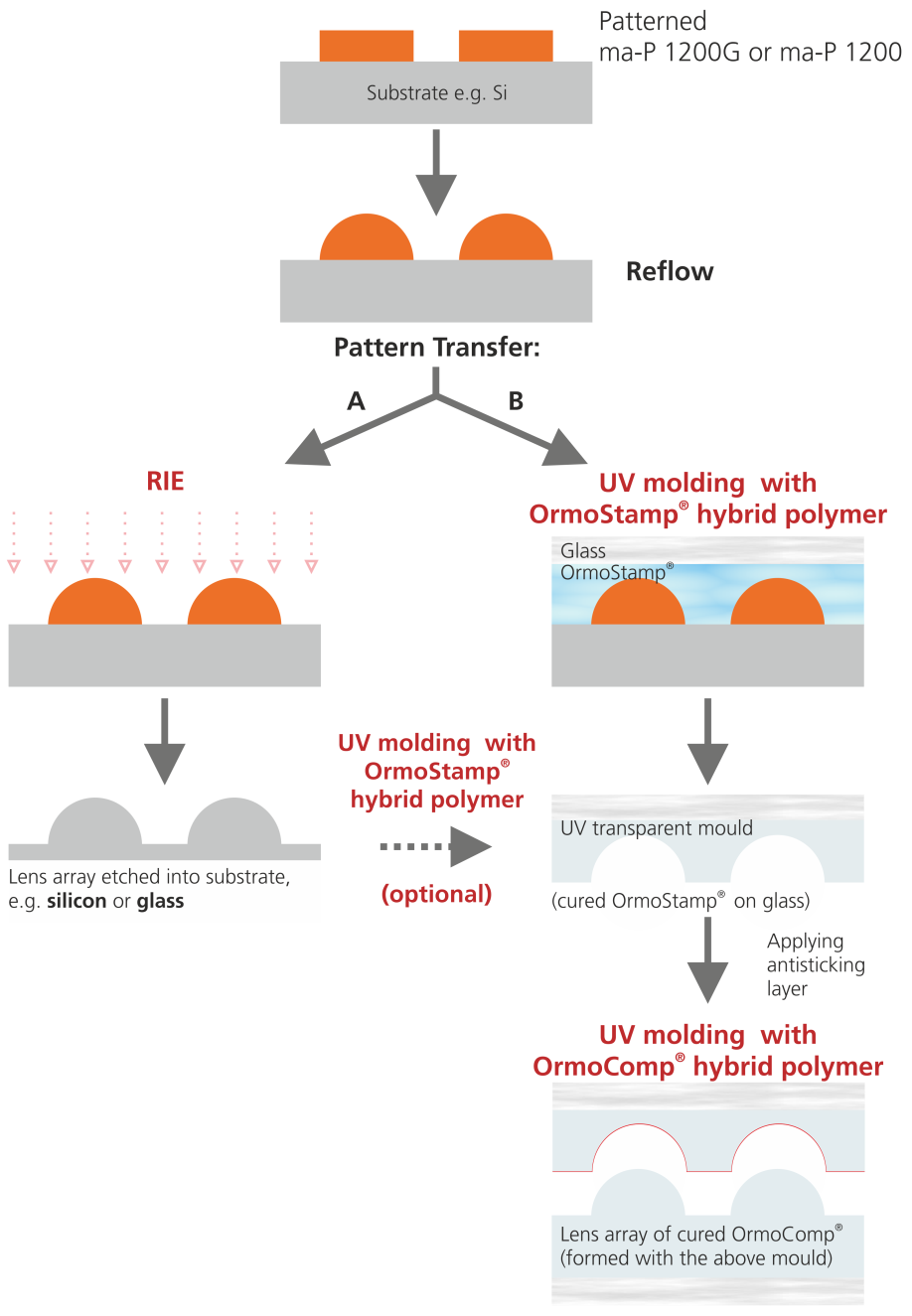

Process

Pattern generation using ma-P 1200G or ma-P 1200:

  • Standard lithography to form pillars
  • Reflow on hotplate, temperature ramp 4-8 K/min from 100 °C, 10 min hold time at 150 °C (ma-P 1200G) or 160 °C (ma-P 1200)
  • Lens structure controlled by height/ diameter ratio of original photoresist pillars, half spheres obtained with ratio 1:3

A) Pattern transfer option:

  • ma-P 1200G/ ma-P 1200 lenses transferred by RIE, e.g. into Si or glass
  • Optional: subsequent UV moulding into OrmoStamp® and OrmoComp®

B) Pattern transfer option:

  • UV moulding with UV-curable OrmoStamp®
  • Application of antisticking layer
  • OrmoStamp® mould ready for multiple UV moulding of OrmoComp® microlens arrays

Applications

  • Fabrication of 3D micropatterns with optical functionality
