Optical 3D patterning by greyscale lithography and UV moulding
Optical 3D patterning by greyscale lithography and UV moulding
23. Juni 2020

An excellent method for the manufacturing of optical 3D structures is grayscale patterning of positive resist ma-P 1200G and subsequent pattern transfer by UV moulding using OrmoStamp® and OrmoComp®.

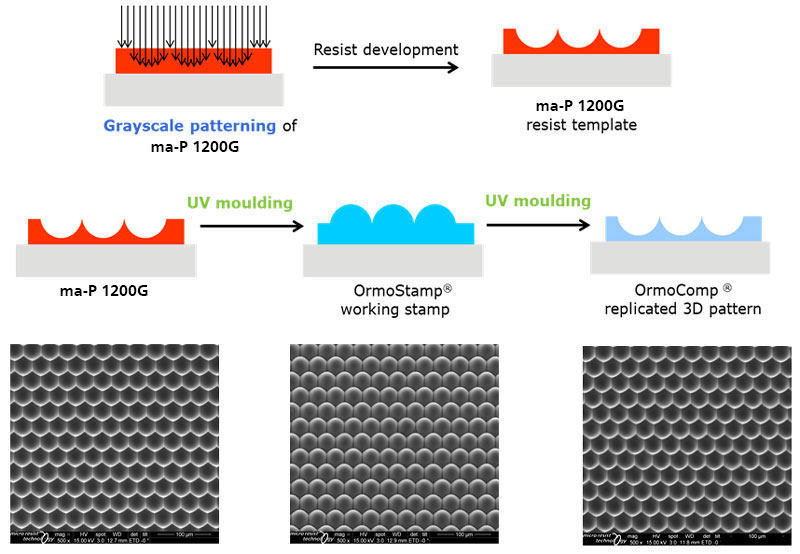

Process

A) Grayscale patterning using ma-P 1200G

  • Formation of a ma-P 1200G resist template

B) Pattern transfer via UV moulding :

  • Working stamp fabrication: ma-P 1200G resist template transferred into UV-curable OrmoStamp®
  • Application of antisticking layer
  • OrmoStamp® working stamp ready for multiple 3D pattern replications by UV moulding of OrmoComp®

Applications

  • Fabrication of 3D micropatterns with optical functionality
