Unique Features

  • Resists available in a variety of viscosities
  • Aqueous alkaline development

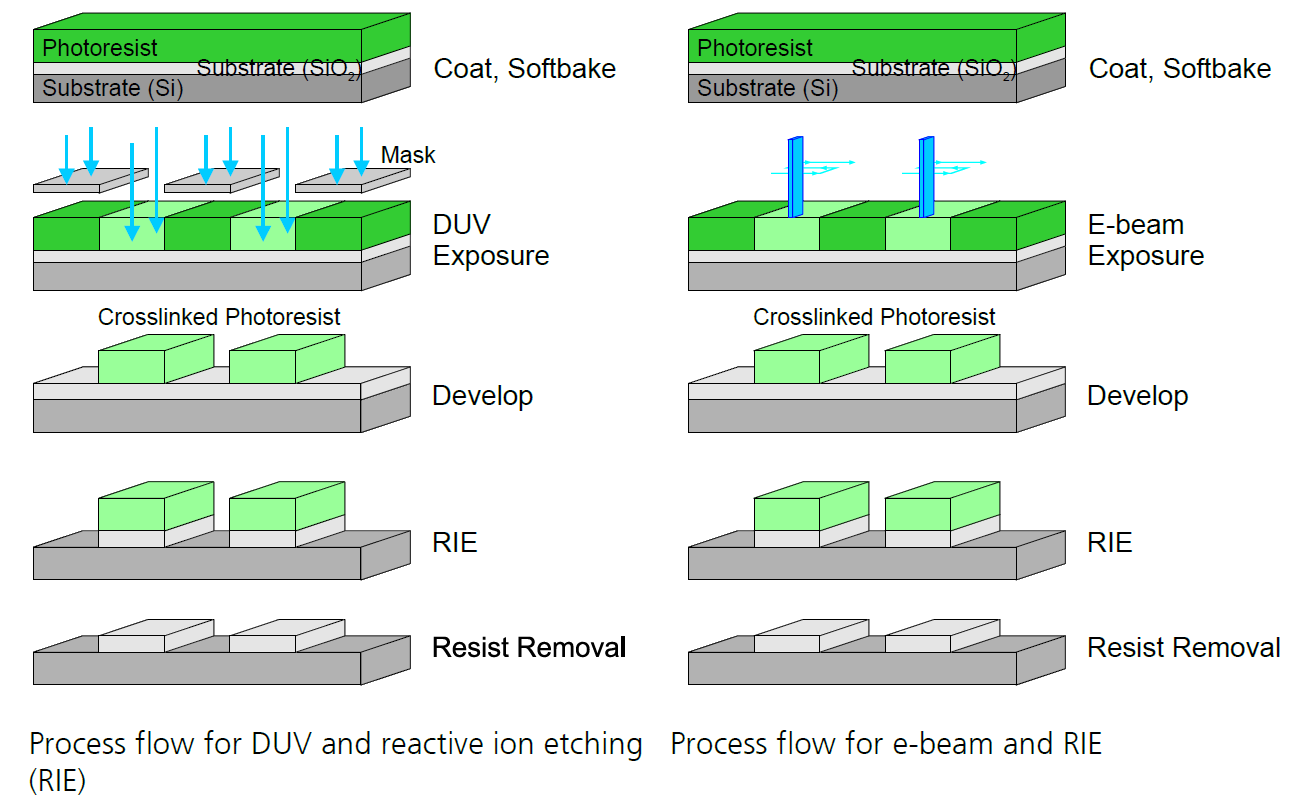

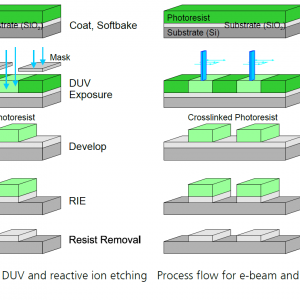

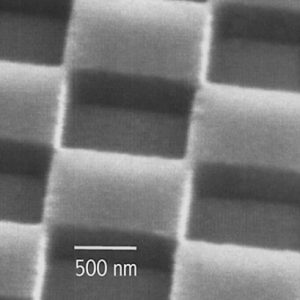

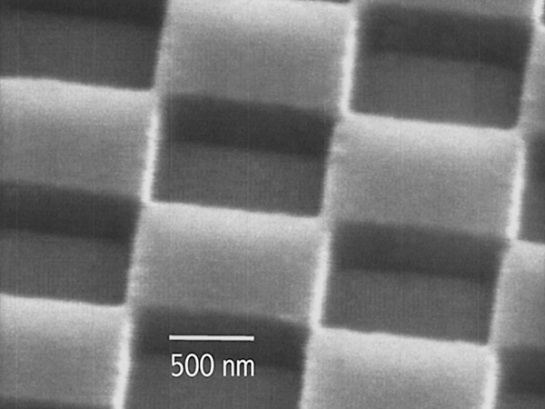

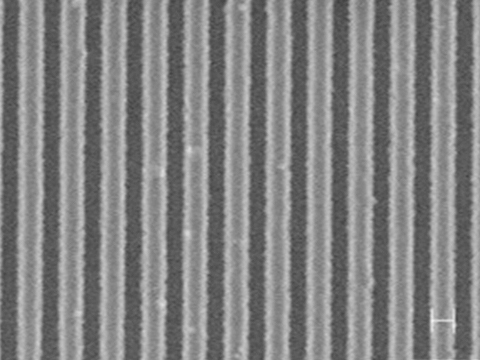

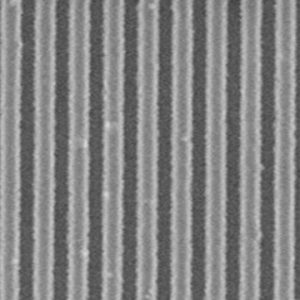

  • Excellent pattern resolution - down to 30 nm
  • High wet and dry etch resistance
  • Good thermal stability
  • Easy to remove


  • Manufacturing of semiconductor devices
  • Use in micro- and nanoelectronics
  • Mask for etching, e.g. Si, SiO2, Si3N4 or metals
  • Mask for ion implantation
  • Stamp fabrication for NIL
E-Beam and Deep UV sensitive
ma-N 2400 - Negative Tone Photoresist Series
Resist ma-N 2401 ma-N 2403 ma-N 2405 ma-N 2410
Film Thickness [µm]
Spin Coating @ 3000 rpm

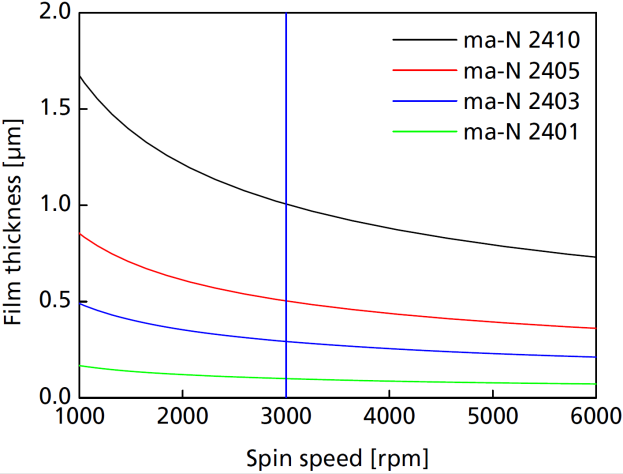

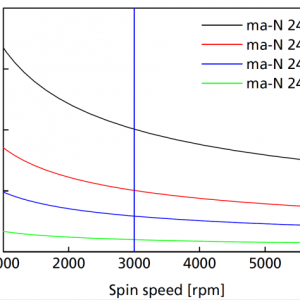

0.1 0.3 0.5 1.0
dyn. viscosity [mPas]
(@ 25 °C, 1000 s-1)
1.5 2.3 3.3 7.0
Prebake 90 - 100 °C
Sensitivity E-beam

Deep UV: 248nm / 254nm

Exposure Dose

E-beam @ 20 keV

E-beam @ 50 keV

E-beam @ 100 keV

Deep UV@ 254/ 266 nm

100 - 350 µC/cm2

120 - 400 µC/cm2

120 - 600 µC/cm2

20 - 150 mJ/cm2

Developer ma-D 525 (TMAH based)

ma-D 331 (NaOH based)

ma-D 525 (TMAH based)

ma-D 332 (NaOH based)

Remover mr-Rem 700 (NMP & NEP free)

mr-Rem 500 (NMP free)

ma-R 404/S (strongly alkaline)

Recommended process chemicals:
Thinner ma-T 1090
Developer ma-D 525 (TMAH based)

ma-D 331, ma-D 332 (NaOH based)

Remover mr-Rem 700 (NMP & NEP free)

mr-Rem 500 (NMP free)

ma-R 404/S (strongly alkaline)

quotation request

Fabrication of phase-gradient meta-surfaces consisting of high AR ma-N 2400 patterns
Fabrication of phase-gradient meta-surfaces consisting of high AR ma-N 2400 patterns
Electron beam lithography using highly sensitive negative tone ma-N 2400 resist in combination with critical point drying enables the direct fabrication of phase-gradient meta-surfaces. This cost-effective alternative material platform and fabrication method effectively reduces the required fabrication to a single lithography step and removes any subsequent need for material deposition, lift-off, or etching.
E-Beam Lithography
Nano- und Mikroelektronik
ma-N 2400
