InkEpo series
Share on email
Share on telegram
Share on whatsapp
Share on twitter
Share on facebook
Share on linkedin

Unique Features

  • UV-curable, solvent based inks
  • Low viscosities
  • Compatible to standard inkjet-printing devices
  • Excellent thermal, mechanical and chemical stability of cured patterns
  • High transparency to near UV and visible light

Applications

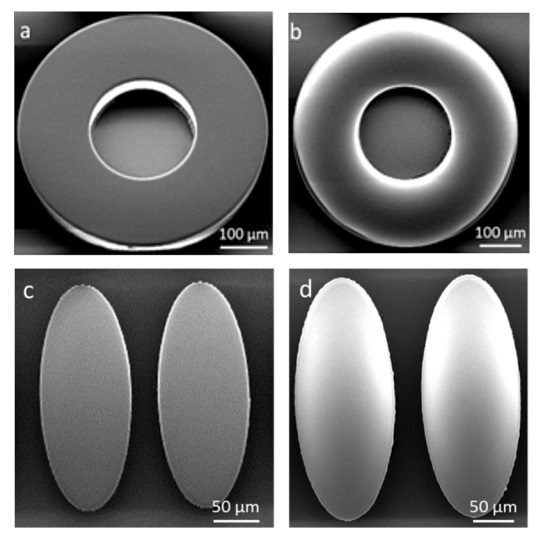

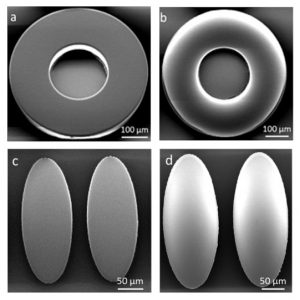

  • Single micro-lenses and micro-lens arrays
  • Waveguides and microfluidic devices
  • Spacers and protecting layers
  • Glue for bonding applications
  • Large-area substrate processing
InkEpo series - UV curable material for inkjet-printing
Ink InkEpo 5 mPas InkEpo 8 mPas InkEpo 12 mPas InkEpo 25 mPas
dyn. Viscosity [mPas]

(@ 25°C, 1000 s-1)

5.0 8.0 12 25

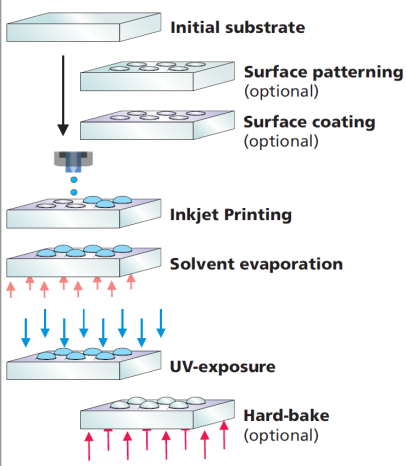

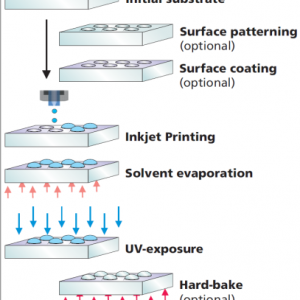

Substrate preparation Option 1: Dehydration bake at 200 °C for 5 min on a hotplate or for 30 min in an oven. Alternatively oxygen plasma can be applied.
Option 2: Hydrophobic surface pre-treatment.
Ink-jet parameters Piezo-actuated nozzle with a size of e.g. 30 μm, 50 μm or 70 μm
Room temperature, up to 70 °C possible
Prebake 80 - 90 °C

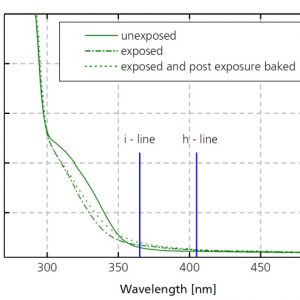

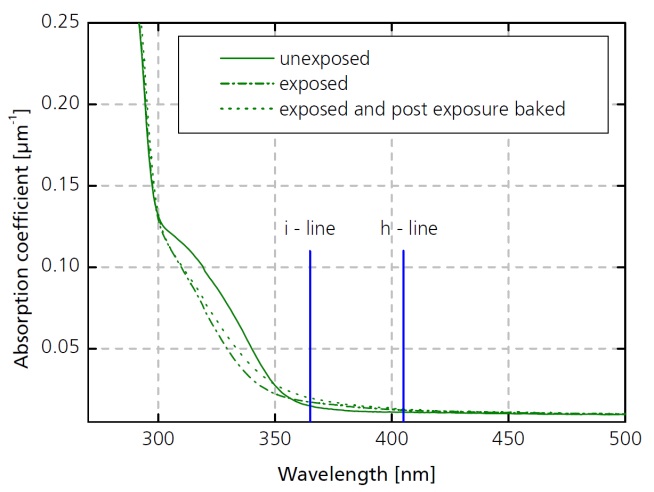

Spectral Sensitivity i-line - 365nm
Exposure Dose

@ 365 nm

UV mercury lamp (broadband exposure), UV-LED

500 - 1.500 mJ/cm2
Post exposure bake (PEB) 90 - 100 °C
Hardbake 100 - 140 °C (optional)
Remover mr-Rem 700 (NMP & NEP free)

mr-Rem 500 (NMP free)

O2-Plasma

Recommended process chemicals:
Thinner no thinner available
Developer not required
Remover mr-Rem 700 (NMP & NEP free)

mr-Rem 500 (NMP free)

O2-plasma
